Ceiling Convertible Type

Unit height as low as 212mm for installation at limited ceiling space.

Product category:

Salient Features

Auto Air Swing

The motorized louver enables the air flow to be evenly distributed.

Auto Restart with Last-State-Memory

In case of sudden power failure during operation, unit restarts automatically & unit will operate based on previous setting when power is resumed.

Ceiling and Floor Installating Option

The unit is uniquely designed with possiblity to be installed under or sitting on the floor to suit any interior design requirements.

Choices Of Wired Or Wireless Remote Controller

Compact and user friendly wireless BRC52A and wired BRC51A remote controller offer : • Real Time Clock • "Glow in the dark" ON/OFF Button • Low, Medium, High fan speed options • ON Timer Setting

Compact Design

Ceiling Cassette C Series body dimension is only 570 mm x 570 mm which can easily fits into a 600 mm ceiling grid.

Far Air Throw

Maximum air throw distance up to 16.5m.

NIM-Able

Able to communicate with the versatile NIM networking control module and offers the oppurtunity of one centralized control for a system of multiple indoor units in a building.

Room Temperature Sensing

Able to sense the room temperature in order to perform more controls for comfort.

Saranet Air Filter

The anti fungus air filter removes air-particles from the air.

Self Diagnosis Features

This feature helps to detect any faults or malfuctioning in the system and provide user a warning by blinking of the LED lights.

Service & Maintenance at Ease

The washable fitler can be easily accessed by just pulling down the intake grill. During servicing or repairing, only the bottom panel needs to be removed in order to access the parts like fan motor, blower, wiring connection, control box, piping connection and so on.

Sleep function for Cool and Heat mode

Once activated, set temperature will be increased / decreased gradually according to normal sleeping temperature patterns to ensure a comfortable sleeping environment.

Valve Or Valveless Control Options

The design is flexible enough to allow for either valve or valveless control installation.

Versatile Installation

The unit is designed to work with high pressure head drain pump (optional). Thus offering flexibility for installation on condensate drain pipe. The drain pump comes with a high head and is incorporate with the float switch as safery protection. Drain pump kit supplied as optional item

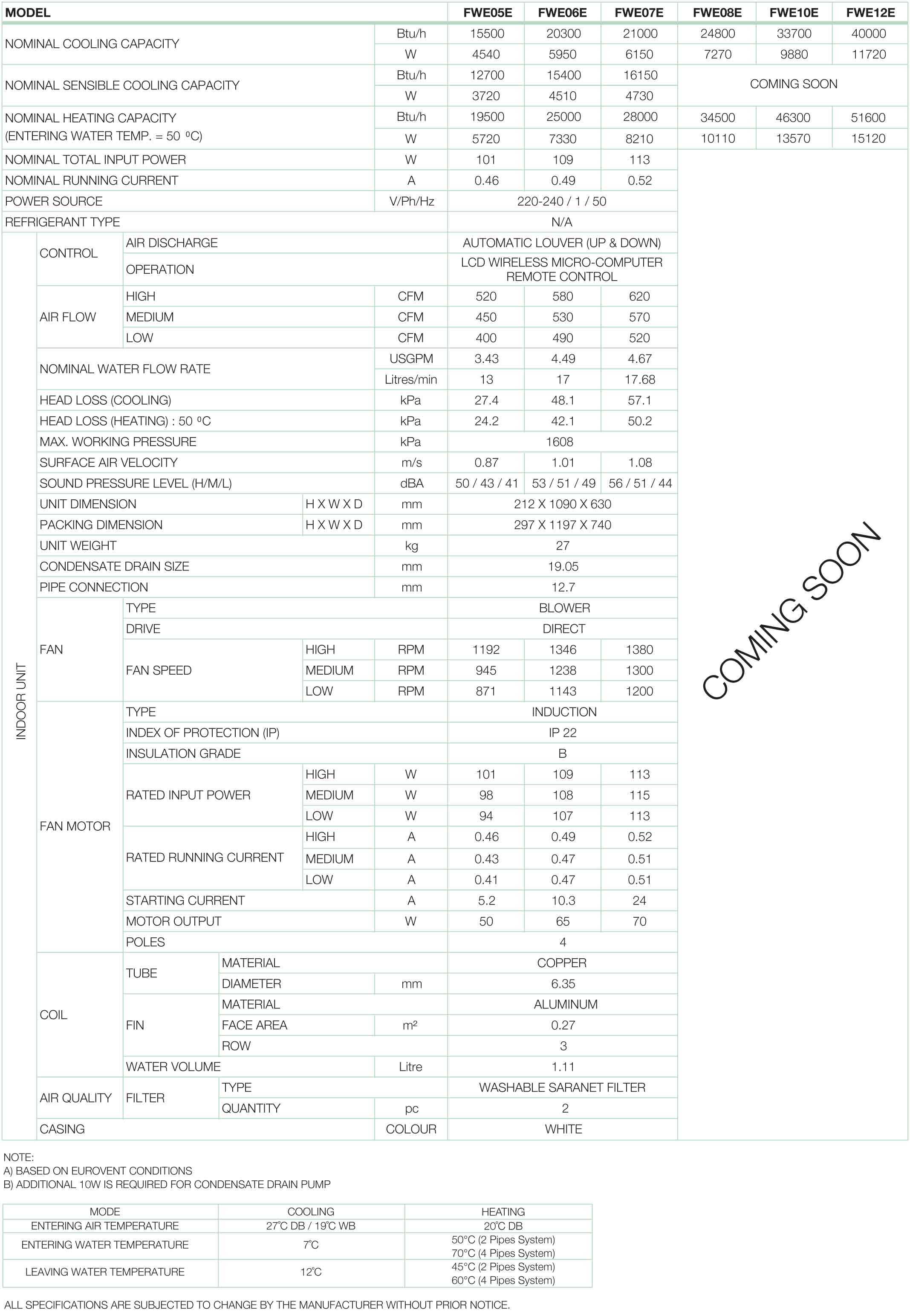

Specification

Ceiling Convertible Type ~ 50Hz

specification

AS A PART OF CONTINOUS DEVELOPMENT AND UPDGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
