Ducted Blower Type

The air can be distributed evenly to every corner of the room through ducting. This not only presents a confortable environment, it also enables the installation of multiple area by using only one fan coil unit.

Product category:

  • Fan Coil Unit›Ducted Blower Type

Salient Features

4 Useable Fan Speed

Each speed offers different external static pressure and air flow which enhances flexibility.

Cabinet Construction

It is coated with weatherproofed electro galvanized mild steel casing, with an epoxy is coated with an epoxy polyester powder costing for sever external conditions. Service panel is available at the convenience side as well.

Changable Drive Package

Changeable belt driven package offers flexibility in customizing project based according to application *Only available for FUD30/40B

Convertible Air Throw Direction

Convertible discharge air direction (vertical or horizontal air throw) provides flexibility in installation at site *Only available for FUD30/40B

Easy To Service

Direct access to control box at side panel and filter is accessible from side panel too.

Excellent Air Distribution

The air can be distributed evenly to every corner of the room through ducting. This not only presents a confortable environment, it also enables the installation of multiple area by using only one fan coil unit.

Fire-Resistant

Polyrethylene (PE) insulation is used at every possible condensate panel to prevent all forms of water or moisture penetration. Polyethylene, which is also a type of Closed Cell Foam (CCF) insulation has offered the following advantages: • Durable external surface that resists tough dirt and resilient. • Higher degree of punsture resistance when compared to fiberglass. • Easily cleaned surface (if necessary) to further resist microbial growth.

High CFM Range

From 20kW to 40kW and 2500CFM to 4600CFM

High External Static Pressure Range

Available up to 167Pa for high static application like the ducting application.

Left / Right Piping option

For flexible installation and application at site

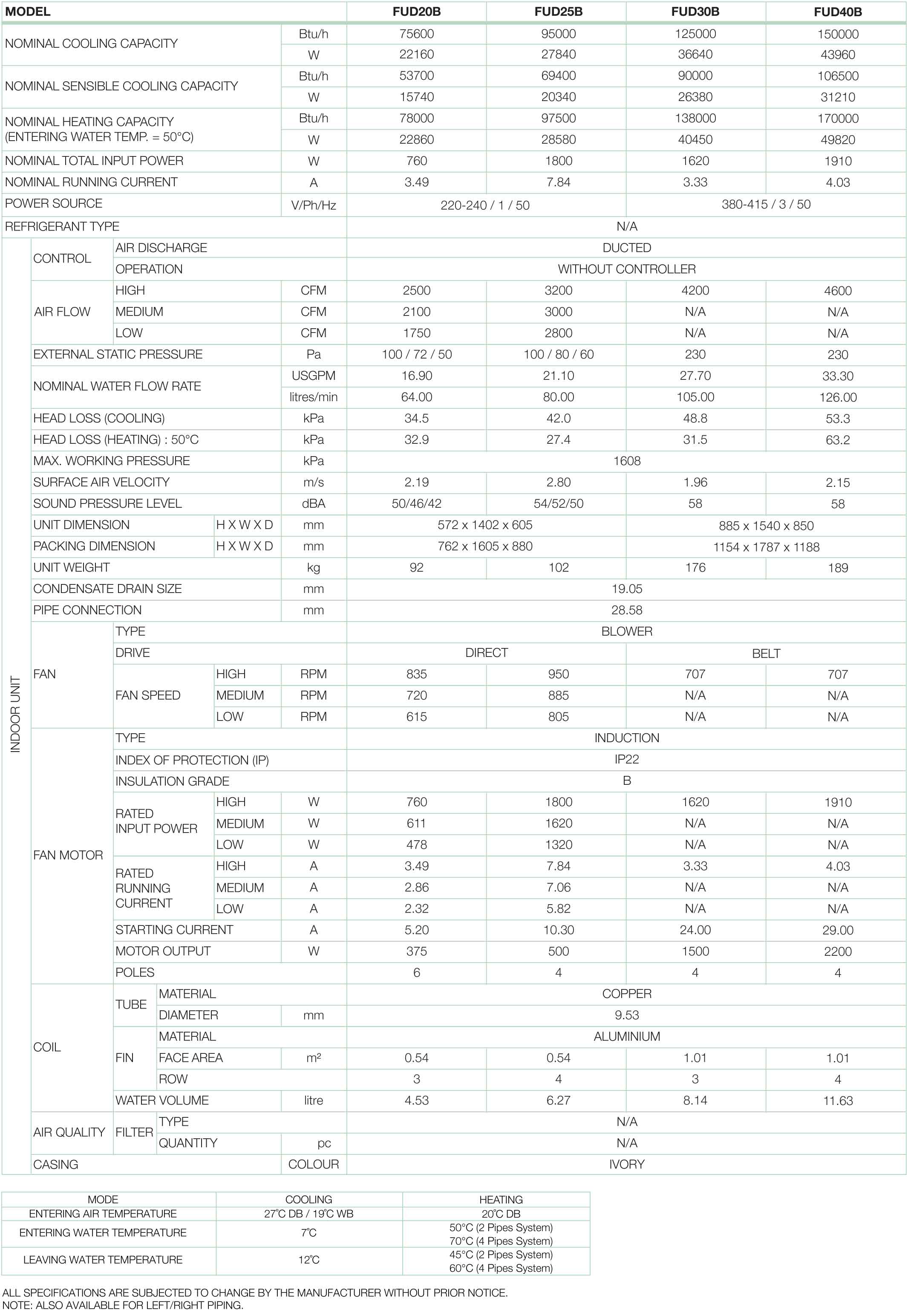

Specification

Ducted Blower Type ~ 50Hz

specification
Download Brochure Enquiry

AS A PART OF CONTINOUS DEVELOPMENT AND UPDGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
