Ceiling Concealed Type

The air can be distributed evenly to every corner of the room through ducting. This not only presents a confortable environment, it also enables the installation of multiple area by using only one fan coil unit.

Product category:

  • Fan Coil Unit›Ceiling Concealed Type

Salient Features

4 Useable Fan Speed

Each speed offers different external static pressure and air flow which enhances flexibility.

Auto Restart with Last-State-Memory

In case of sudden power failure during operation, unit restarts automatically & unit will operate based on previous setting when power is resumed.

Compact Design

Ceiling Cassette C Series body dimension is only 570 mm x 570 mm which can easily fits into a 600 mm ceiling grid.

Double Protection Drainage System

There are primary and secondary drain pan from the standard model, which provide extra protection against condensed or water leaking posibilities.

Easy To Service

Direct access to control box at side panel and filter is accessible from side panel too.

Excellent Air Distribution

The air can be distributed evenly to every corner of the room through ducting. This not only presents a confortable environment, it also enables the installation of multiple area by using only one fan coil unit.

High Capacity Range

From 3kW to 16kW.

High External Static Pressure Range

Available up to 167Pa for high static application like the ducting application.

Left / Right Piping option

For flexible installation and application at site

NIM-Able

Able to communicate with the versatile NIM networking control module and offers the oppurtunity of one centralized control for a system of multiple indoor units in a building.

Self Diagnosis Features

This feature helps to detect any faults or malfuctioning in the system and provide user a warning by blinking of the LED lights.

Valve Or Valveless Control Options

The design is flexible enough to allow for either valve or valveless control installation.

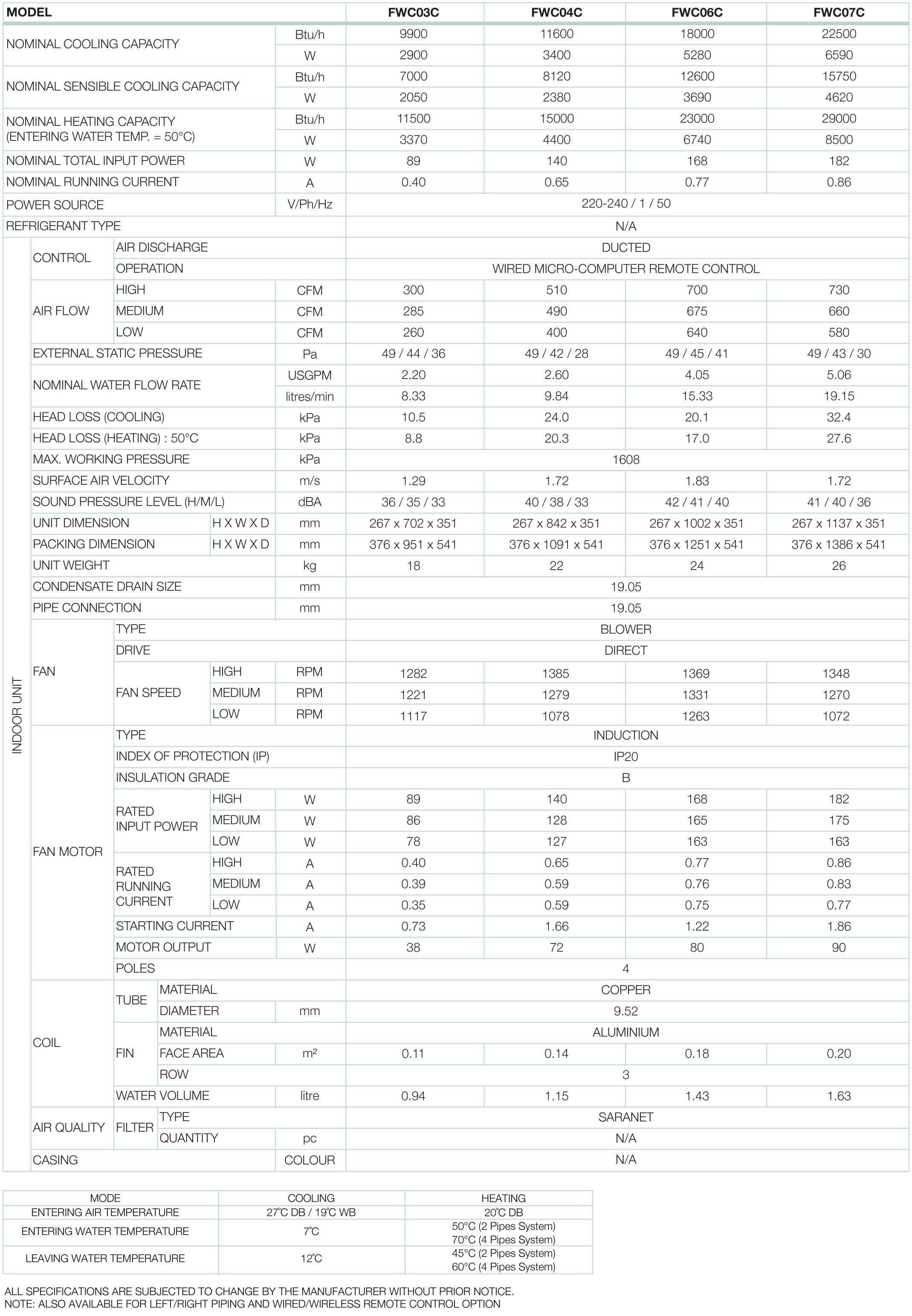

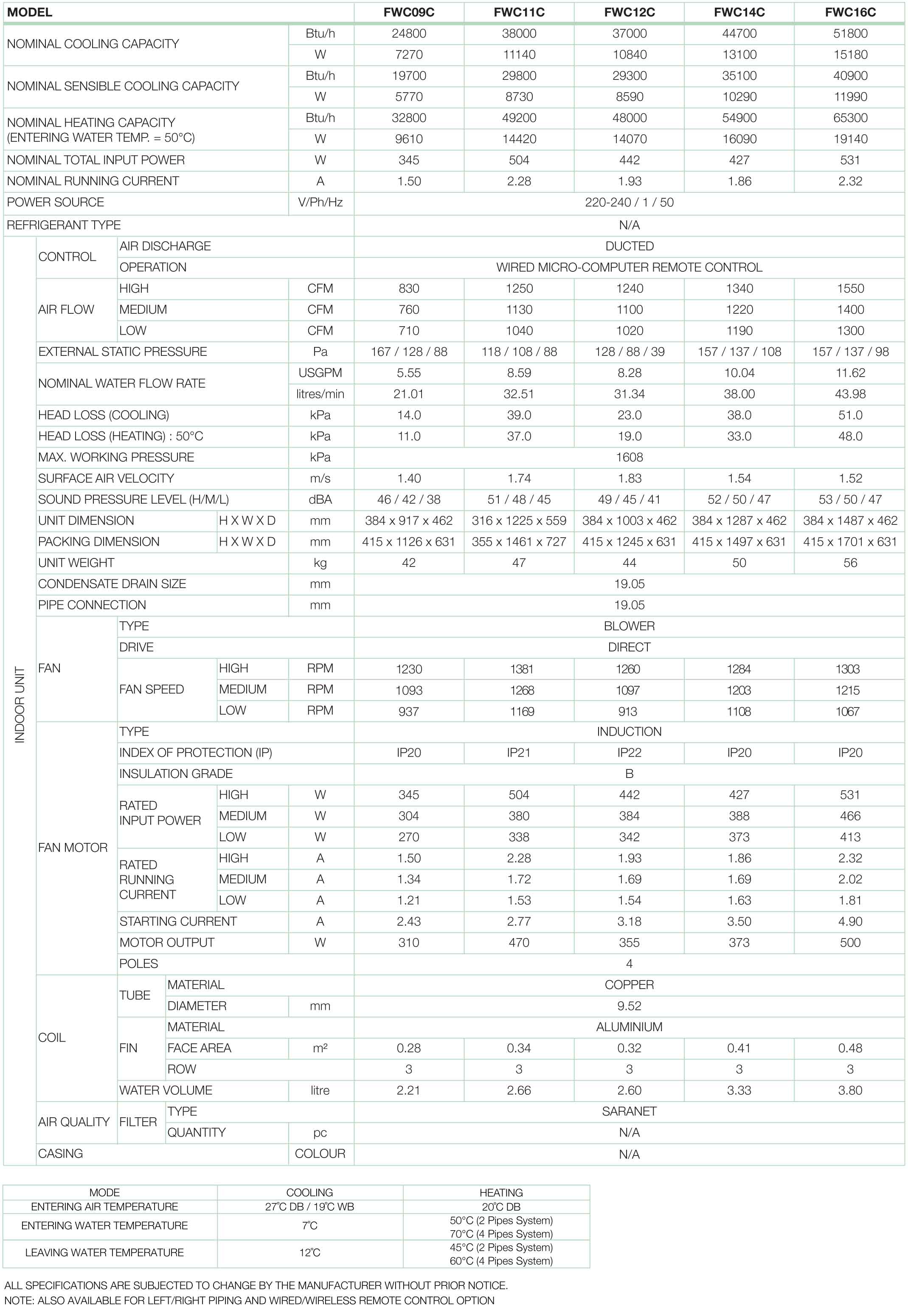

Specification

Ceiling Concealed Type ~ 50Hz

specificationspecification
Download Brochure Enquiry

AS A PART OF CONTINOUS DEVELOPMENT AND UPDGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
